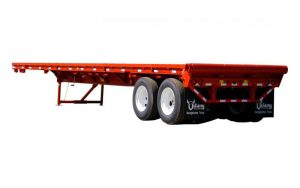

Viking Specialized Trailers VFD57-24F-70T
| Manufacturer: Viking Specialized Trailers |
Make & Model
Detailed Specification
70 Ton
57' long x 102" wide
28,920 lbs. +/-3%
170000 lbs.
24” Fabricated main beams with 1-1/2” camber, 3/4″ x 6″ top and bottom flange, 1/4” web welded on both sides 1/2” x 6” flange strap in the neck. All flange and web material is high strength steel.
8″ x 6.5# I beam on 18″ centers.
2″ SAE kingpin, 3/8″ kingpin plate, 15” kingpin setting (standard).
12″ Fabricated I beam, 1/2″ x 4″ top and bottom flange, 1/4″ web welded on both sides.
Hendrickson® HT250US air ride with front and rear axle lift, and manual dump valve. 7.5” Ride height.
(5) 25,000 Lb., 5” round, 5/8” wall, 77-1/2” track
16-1/2” x 7”, Type 30/30 brake chambers, outboard drums, Meritor WABCO® (4S/2M) ABS on two axles.
8.25 x 22.5, Steel 10 Hole disc, hub piloted (color: white).
255/70R x 22.5 Radials.
2 Speed gear with 62,500 lb. lift capacity; 200,000 lb. static capacity (standard).
Shotblasted and painted with a high solid polyurethane paint. Colors: black or red (standard).
2” Nominal oak (standard).
7-Way main receptacle, sealed wiring harness, rubber mounted LED lights. 5 Lights per side including mid-turn.
Pop-up deck rollers,
50-Ton 3-axle configuration,
60-Ton 4-axle configuration,
Epoxy or zinc-rich primer available.
Description
The oil and gas industry has always required heavy hauling equipment. Everything used in this industry is heavy. The ability to move heavy sections of equipment from one location to another has always been the method. This trailer is designed to do just that. With a 70-ton rating and the ability to winch up over the 8-5/8″ tailroller, equipment can be loaded quickly and transported safely to the next location. The Heavy Duty 8-5/8″ tailroller is designed with service in mind. The bearings are replaceable and greaseable. If you are loading skids, rig sections, or crew quarters, this trailer does it all. Built to last, built Viking tough. Capacity: 170,000 lbs. GVWR.
