| Manufacturer: Viking Specialized Trailers |
Make & Model
Detailed Specification
48' long x 102" wide
19-1/2" 90 degree drop
40-3/4" rear deck height (light)
10'-6" upper deck
37'-6" lower deck
10000 lbs. +/- 3%
80000 lbs.
24” Fabricated main beams with 2” camber, 1/2” x 5” top and bottom flange, 5/8” x 5” bottom flange in the neck, 3/16” web welded on both sides with weight reduction holes. All flange and web material is high strength steel.
4″ Extruded aluminum I beam on 16″ centers with single coil package.
2″ SAE kingpin, 1/4″ plate, 24″ kingpin setting (standard).
6” Extruded aluminum with stake pockets on 24″ centers. 3/8″ x 3″ Aluminum rubrails with double pipe spools.
(2) Cush 25K unitized air ride suspension (dump valve included on rear axle).
(2) 25,000 Lb., 5-3/4” round, (included with suspension).
16-1/2” x 7”, Type 30/30 brake chambers, outboard drums, Meritor WABCO® (2S/1M) ABS on one axle.
8.25 x 22.5, Aluminum, 10 Hole disc, hub piloted (polished finish on the outside and machine finish on the inside).
255/70R x 22.5 Radials.
2 Speed gear with 62,500 lb. lift capacity; 200,000 lb. static capacity (standard).
Steel components are shotblasted, epoxy primed and painted with a high solid polyurethane paint. Colors: black or red (standard) optional colors available.
1-1/4″ Extruded aluminum with 4 apitong nailing strips.
7-Way main receptacle, sealed wiring harness with 3 red (tail / stop / turn) rubber mounted LED lights with a 3 light center cluster, 5 clearance lights per side including midturn
Spring or air ride slider,
Spring suspension,
Spare tire carrier,
18″ x 18″ x 60″ Aluminum tool box,
48″ front bulkhead,
Longer and shorter lengths,
Front and rear stake pockets.

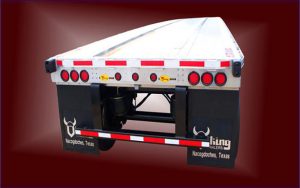

Description
The Transporter Combo Drop combines quality and durability. Aluminum crossmembers, outriggers, siderail, bulkheads, and flooring come together to make our lightest Drop Deck trailer. This trailer was designed to last while allowing you to haul the most. Capacity: 80,000 GVWR.
